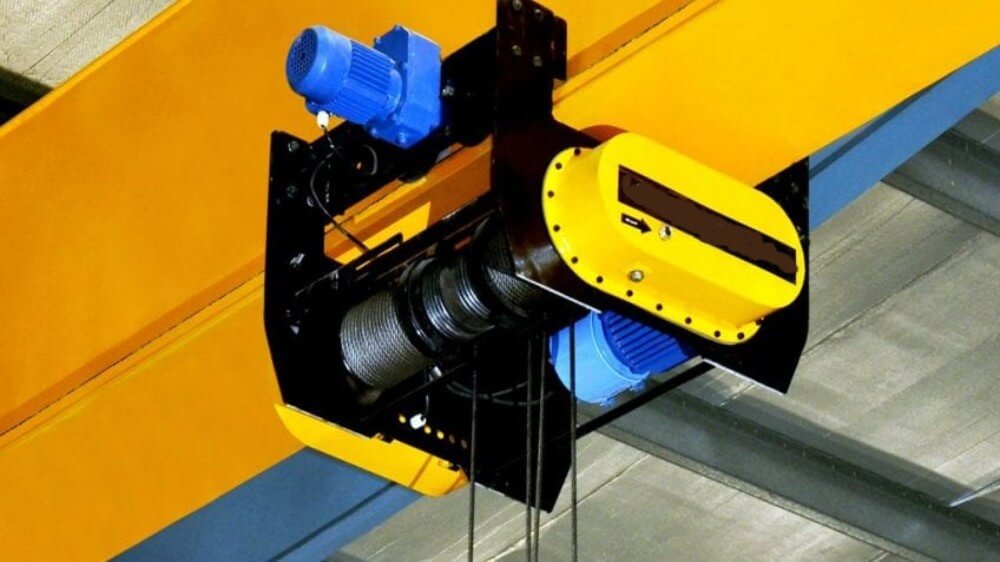

ELECTRIC WIRE ROPE HOIST (MEWRH)
Arihant Engineers Electric Wire Rope Hoist is designed in modular construction which greatly simplifies repairs & cuts down - time. The special features are low head - room, spur / helical gears running on anti friction ball bearings with oil bath lubrication, motors, “fail to safe " breaks which automatically operate in case of any power failure, tested wire rope, forged hooks and push button stations operating at step down voltage of 110 V or 24 V.
The Electric Wire Rope Hoist gear train is with precision hob cut helical / spur gears having hardness up to 250 to 300 BHN running on bearings housed in sheet metal cover with gasket & lubricated with oil bath lubrication.
Arihant Engineers Electric Wire Rope Hoist can also be built with micro speed arrangements (10% of normal hoisting speed), flexible trolleys to negotiate small radius, high speeds & high lifts, hoists suitable for steel mill duty; foundries & Chemical Plants.
The special features are low headroom, spur/ helical gears running on anti friction ball bearings with oil bath lubrication, motors confirming to IS 325, " fail to safe " breaks which automatically operate in case of any power failure, tested wire rope confirming to IS 2266, forged hooks conforming to IS 3815 and push button stations operating at step down
RANGE OF SPECIFICATIONS:
Make In India.
Safe Working Load: 500 kgs. to 20,000 kgs.
Heights of Lift: As per customer specifications.
Speeds: Selected depending on client specifications / applications / shed dimensions.
Crane Control: From floor through Pendant Push Buttons, Optionally through Radio Remote Control.
Drive System: Drive through Squirrel Cage Induction Geared Motors with built-in fail safe brakes.
Motors: Squirrel Cage Induction Hoisting Motors with built-in fail safe brakes for Hoisting. Insulation Class for all motors B/F.
Brakes: Built-in Brakes for Hoisting, Cross Travel Motions.
Power Supply System: To Hoist and Cross Travel through Trailing Cables.
